Product Origin:
ChinaItem NO.:
100KVA 80KW Air Cooled Diesel Generator Low Noise Diesel Generator| Cooling System: | Air Cooling | Type: | Air Cooled Diesel Generator |
|---|---|---|---|
| Engine Model: | F3L912 | Alternator Type: | Self-excitation , Brushless Type |
| After-sales Service Provided: | Online Support,Free Spare Parts | Condition: | Brand New |
| Governer: | Mechanically | Name: | 15kva 12kw Diesel Generator |
| Product Name: | Silent Air Cooled Wind Kva Diesel Generator Portable | Engine Type: | 3-cylinder ,4-Stroke |
| High Light: | 80KW Air Cooled Diesel Generator,100KVA Air Cooled Diesel Generator,15kva Low Noise Diesel Generator | ||

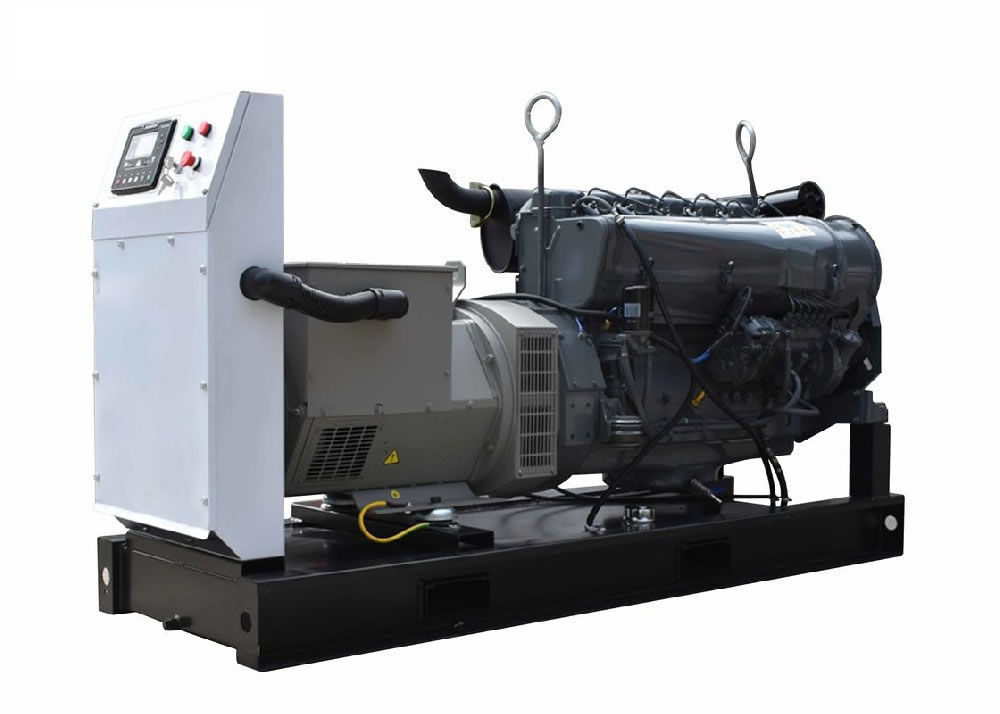

100kva 80kw Air Cooled Diesel Generator Deutz Diesel Generator BF4M1013EC Low Noise Diesel Generator Set
Features :
SPECIAL DESIGN ADVANTAGE :
1. IP66 Australia special socket, 3 & 1 phase, 10A, 20A, 32A;
2. Australian industrial water-proof plug 1 & 3 phase
3. Double layer drawout design base fuel tank, anti- fuel leaking
4. Famous brand COMAP AMF20 controller
5. Deutz type engine , Brushless alternator with 100% copper
6. Forklift foot with Sockets for easy handling
7. Double lifting rings, removable, easy maintenance
8. Silencer: Heavy duty industrial type silencer with flexible bellow,elbow.
9. Battery: Varta Brand,high capacity sealed maintenance free battery c/w battery cables.
10. Fuel Tank: 8 hours base fuel tank
11. Tool Kits & Manuals: Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.
| MODEL | APD-100 | ||
| PRIME POWER (KVA/KW) | 100/80 | STANDBY POWER(KVA/KW) | 110/88 |
| Rated speed(rpm) | 1500 | Rated frequency(Hz) | 50 |
| Power factor | 0.8 | Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER | DEUTZ |
| Model | BF4M1013EC |
| Rated Power(kW) | 97 |
| No. of cylinders & configuration | In-Line 4 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electronic governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 4.764 |
| Bore*Stroke(mm) | 108*130 |
| 100% Load fuel consumption(L/h) | ?22 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| CONTROL SYSTEM | V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, temp.and pressure gauges, indicating lamp, hour meter, key starter, etc. |
