240V Automatic Voltage Regulator Of AC Generator| Type: | Generator AVR DVR2000E | Input Voltage: | 180-240V AC 50/60HZ |
|---|---|---|---|
| Stock: | Stock Supply For AVR DVR2000E | Frequency: | 50-60Hz Nominal |
| Voltage Regulate: | ≤ ± 0.25% | Usage: | Underfrequency (volts/hertz) Regulation. |
| Model Number: | AVR DVR2000E | Warranty: | 1 Year |
| High Light: | 180V Automatic Voltage Regulator Of AC Generator,240v Automatic Voltage Regulator Of AC Generator,DVR2000E brushless alternator generator | ||

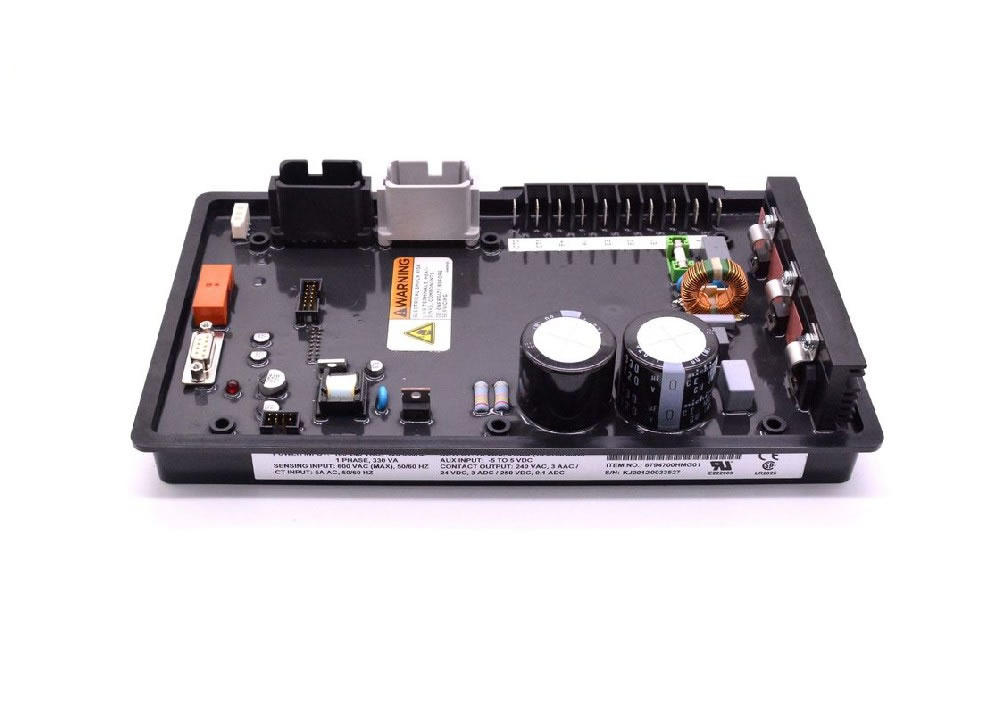

Generator AVR DVR2000E Marathon Used AC Brushless Alternator Generator Voltage Regulation
Specification
- Dvr 2000e marathon generator regulates the output voltage of a brushless, ac generator by controlling the current into the generator exciter field. Input power to the DVR2000E is from a multi-pole, high-frequency, permanent magnet generator (PMG).
- Generator digital AVR DVR 2000E is supplied in an encapsulated package designed for behind-the-panel mounting.
The DVR2000E is held in place by thread-forming screws that thread into its plastic shell. Front panel indicators (LEDs) annunciate regulator status and system conditions. DVR2000E connections are made through quarter-inch, quick-connect terminals on the rear panel. A 9-pin DB-9 type connector on the rear panel provides communication between the DVR2000E and an IBM compatible PC.
| Dvr 2000e marathon generator replaced type | |
| Sensing Input voltage | 180-240V AC 50/60HZ |
| Power input voltage | 180-240V AC 50/60HZ |
| Output current | Max 90VD@207AC,Continuous 4A dc,Intermitten 10A for 10s. |
| Volts adjustment | ± 8% within 1K Ohm |
| UFRO | Slop 17% down to 30Hz |
| Volts regulation | ≤ ± 0.25% |
| Four control modes: | automatic voltage regulation (AVR), manual or current regulation (FCR), power factor (PF) regulation, and reactive power (VAR) regulation. |
| Function List | • Programmable stability settings. |
| • Soft start control with an adjustable time setting in AVR control mode. | |
| • Overexcitation (OEL) limiting in AVR, VAR, and PF control modes. | |
| • Underfrequency (volts/hertz) regulation. | |
| • Crowbar circuitry protects the area. | |
| • Overtemperature protection. | |
| • Three-phase or single-phase generator voltage (RMS) sensing/regulation in AVR mode. | |
| • Single-phase generator current sensing for metering and regulation purposes. | |
| • current and voltage sensing. | |
