500KW 2 Wire 20 Amps Single Phase Generator AVR| Type: | Generator AVR-20A | External Volts Adjustment: | +/-7%with 1K Ω 1watt Trimmer |
|---|---|---|---|
| Stock: | Stock Supply For AVR-20A | Frequency: | 50-60Hz Nominal |
| Vibration: | 3G@100~2K Hz | Operating Temperature: | -40~65 ℃ |
| Model Number: | AVR-20A | Warranty: | 1000 Running Hours |
| High Light: | 500KW Generator AVR,20amps Generator AVR,60hz universal avr for generator | ||

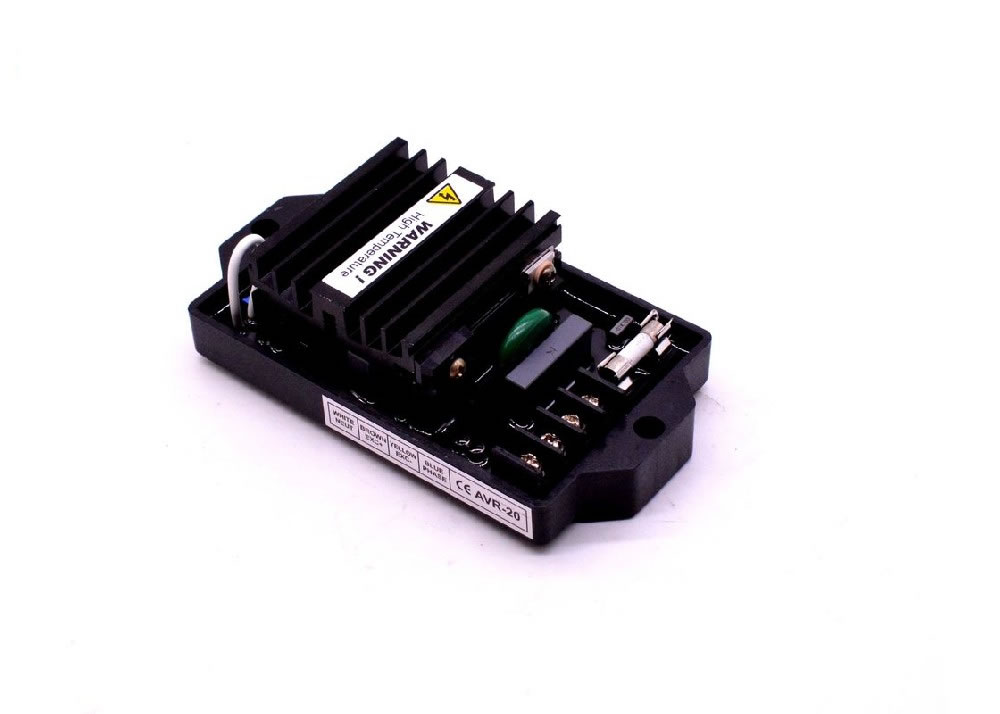

Generator AVR 20A Universal Type AC Brushless Alternator Generator Used 500KW Generator Parts
AVR GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip- Switch Programmable be Valtage alternator generator , which is suitable for brushless generator.
GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-switch Programmable be Valtage alternator generator , which is suitable for brushless generator.
* Sensing Input Voltage 220/400VAC,1phase 2wire
* Power Input Voltage 180~240VAC, 1phase 2wire
* Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 15A for 10SEE
Resistance Min.10? Max 100?
| Input | Sensing Voltage | 220/400VAC,1phase2wire |
| Power Voltage | 180~240VAC,1phase2wire | |
| Output | Voltage | Max.90VDC@240VACinput |
| Current | Continuous 15A, Intermittent 20A for 10SEE | |
| Resistance | Min.10 Ω Max.100 Ω | |
| VoltageBuild-up | Residualvolts at A VR teminal>5VAC | |
| External Volts Adjustment | +/-7%with 1KΩ 1watt trimmer | |
| Sotf Start Ramp Time | 3sec. | |
| Unit Power Dissipation | Max.8Watt | |
| EMI Suppression | Internal Electromagnetic Interference Filtering | |
| Thermal.Drift | 0.05%per 'C chage in AVR ambient | |
| Under frequency protection | 60Hz system presets knee point at 57Hz | |
| Factory Settings | 50Hz system presets knee point at 47Hz | |
