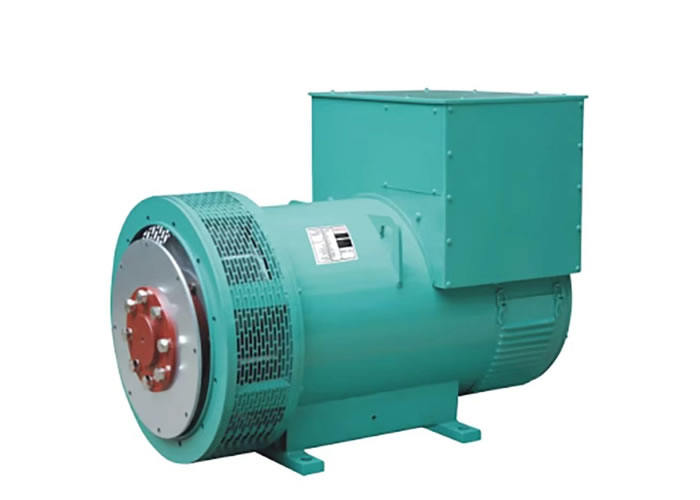

8KVA To 600KVA Brushless Alternator 100% Copper Electric Power Brushless Stamford Type Alternator Generator

Specifications
1) Power range: 8-600kVA(6.5-536kw).
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option, and High-Voltage Alternator(4KV&11KV) also available

EXCITATION SYSTEM :
AVR: SX440, SX460, MX321, MX341
The main stator supplies power to the exciter stator via the AVR. The exciter rotor output is provided to the main rotor by a three-phase full wave bridge rectifier. This rectifier is protected by a surge suppressor against surges ecused by short circuit or lost Synchronization. Voltage regulation of SX440 AVR with three phase induction detecting module< ±0.5 %.MX321 and MX341 suitable for the generator with permanent magnetic generator (PMG).

Electric Features
Insulation And Varnish:
The insulation system is class H.
All wound components are impregnated with materials and processes designed specifically ensure the generator running in dreadful conditions. The special developed resin materials meet rotating components.

Windings and Electrical Performance:
All generator stators are wound to 2/3 pitch, This eliminates triple(3rd,9th,15th.)harmonics on the voltage waveform and is an optimum designed for UPS equipment of non linear loads. The 2/3 pitch design avoids excessive neutral currents result from higher winding pitches. A fully consecutive damper winding reduces oscillations during paralleling. The 2/3 pitch windings and carefully pole and tooth ensures very low waveform distortion.
